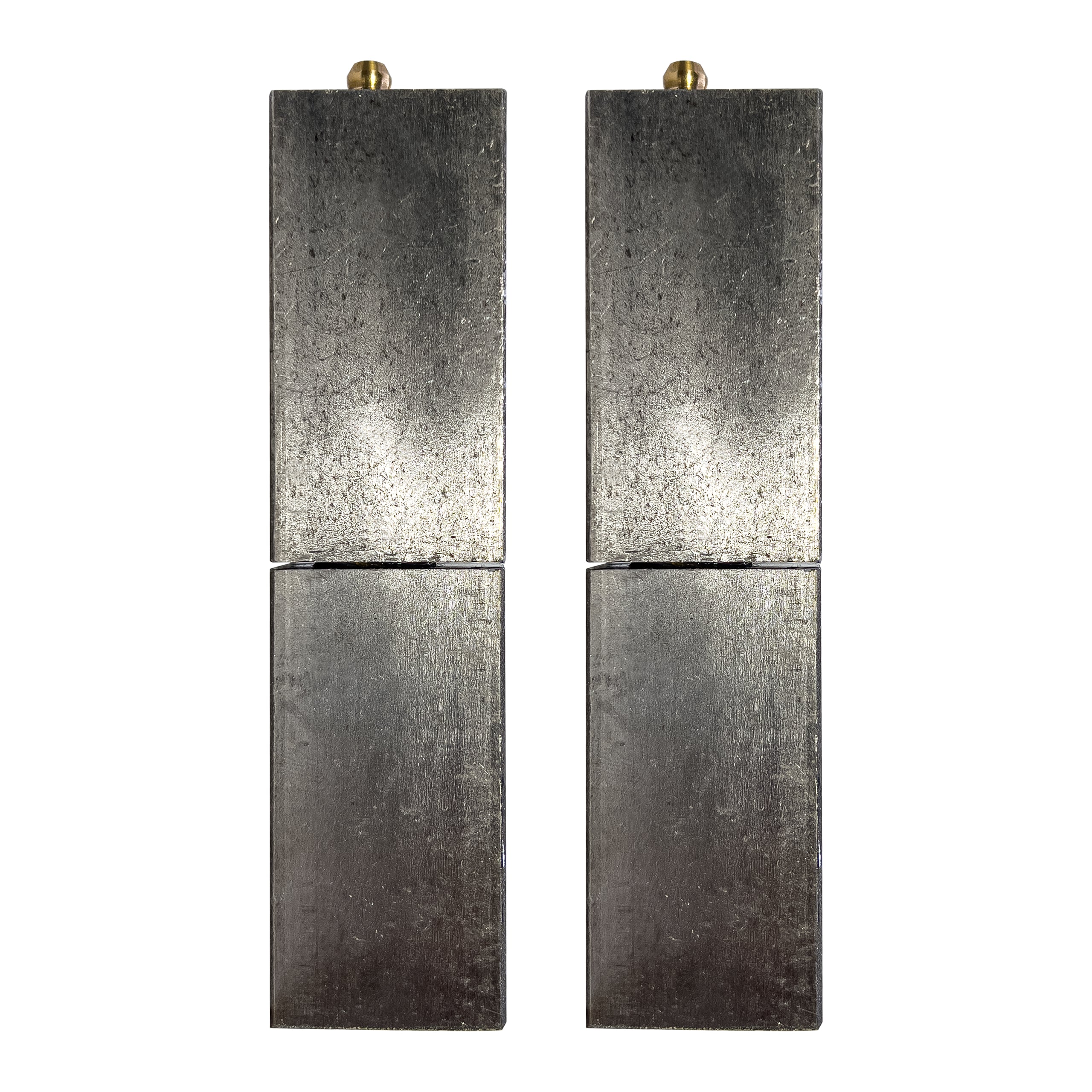

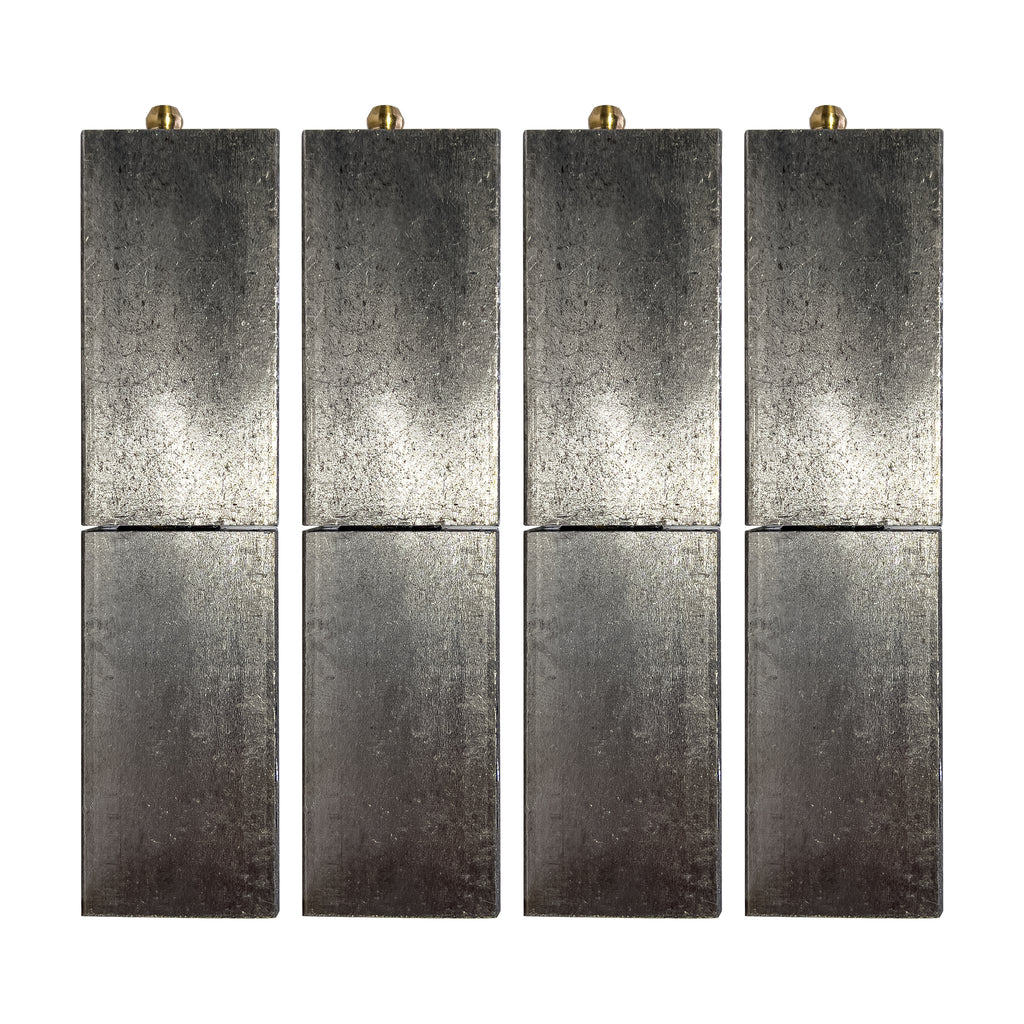

Sidco Supply’s Heavy Duty Metal Weld On Hinges are the ultimate solution for heavy-duty projects including industrial, commercial, and residential applications. Engineered for weldable hinge projects such as gates, metal doors, iron doors, swing gates, trailer ramps, trailer gates, and DIY applications. Our Heavy-Duty Weldable Hinges are specially designed for durability and smooth operation for your weld-on hinge projects. These high-performance Rectangle hinges combine robust construction with a sleek polished finish, making them the ideal choice for both heavy-duty and aesthetic applications.
Specifications: 4.96 x 1.25 x 0.982” Inches (125.97 x 31.85 x 24.96mm), 0.035”(0.89mm)Gap, 0.627" (15.93mm) Pin Diameter, 27.23oz (772g) Weight, 0.276” Inches (7.01mm) Overhang, 0.552” (14.01mm) Ball Bearing, 600 lbs load capacity per pair
Heavy Duty – Weldable steel rectangular hinges constructed from premium grade carbon steel offering exceptional strength and performance to withstand the heaviest doors, gates, and projects up to 600 lbs a pair.
Smooth Operation – Equipped with a ball bearing, offering a silent, smooth, frictionless movement, even under the most demanding conditions. Engineered to provide a 180-degree rotation allowing gates and doors to swing and operate smoothly while preventing unnecessary wear and tear.
Durability – Polished sleek finish ready to weld out of the box. Built to endure the toughest conditions, our heavy-duty ball-bearing weldable Square hinges are the ultimate choice for securing gates and doors and various projects in demanding environments.
Easy Maintenance - Hassle-free maintenance convenient grease nipple attachment recommended to re-apply every 2-3 Years.
